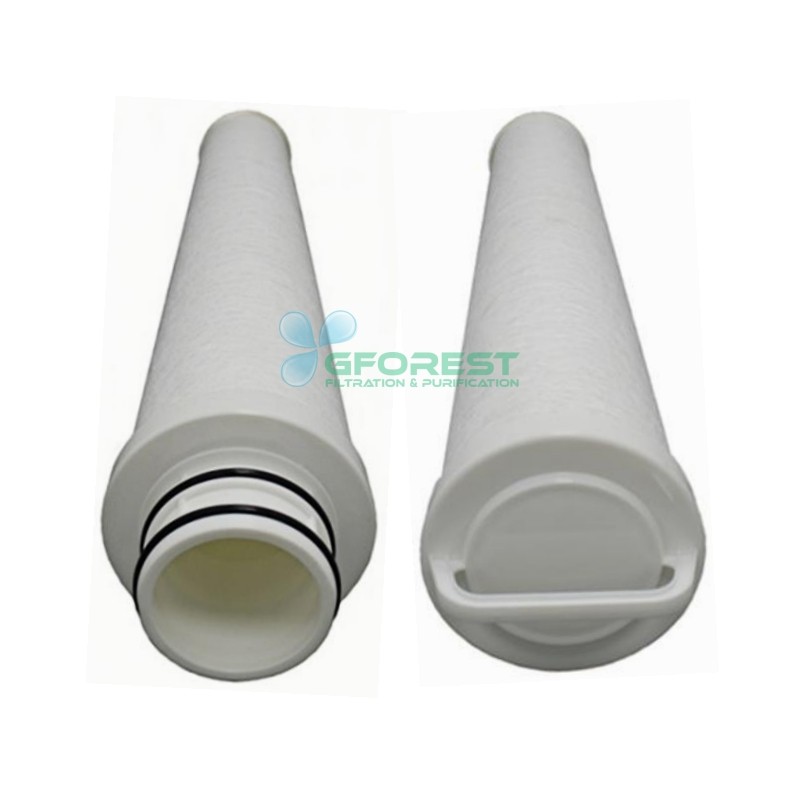

ProMega-U High Flow Filter Cartridge
Product Features
• PP(Polypropylene) materials in compliance with FDA standard
• ProMega-U series can well replace Aqua Fon Big One series and PL Big One series high flow filter cartridge
• Three kinds of filter media structure can be selected according to the requirements, PP(Polypropylene) melt blown type, PP(Polypropylene) pleated type and PP(Polypropylene) string wound type
• Available length: 23 inch and 40 inch
• Has the advantage of high flow rate, easy installation and quick change-out compared with the traditional OD2.5" filter cartridges
• Wide chemical compatibility for different applications
| Length | 23inch, 40inch |
| OD | 144mm |
| OD with O-ring | 98mm |
| Filter Media | PP Melt Blown, PP Pleated, PP String Wound |
| End Caps & Outer Cage | PP(Polypropylene) |
| Micron Rating | 1μm, 3μm, 5μm, 10μm, 20μm, 40μm, 100μm |
| O-ring Seal | EPDM/Buna-N/Silicone/Viton |
| Max Flow Rate (PP Pleated Type) | 53m³/hr@40inch, 27m³/hr@23inch |
| Recommended Flow Rate (PP Pleated Type) | 29m³/hr@40inch, 17m³/hr@23inch |
| Max Flow Rate (PP Melt Blown) | 49m³/hr@40inch, 24m³/hr@23inch |
| Recommended Flow Rate (PP Melt Blown) | 29m³/hr@40inch, 15m³/hr@23inch |
| Flow Direction | Outside to Inside |
| Max. Temperature | ~80 ℃ |
| Recommended DP for Change-out | 2.1-2.4bar(PP Pleated), 0.8bar(PP Melt Blown) |
